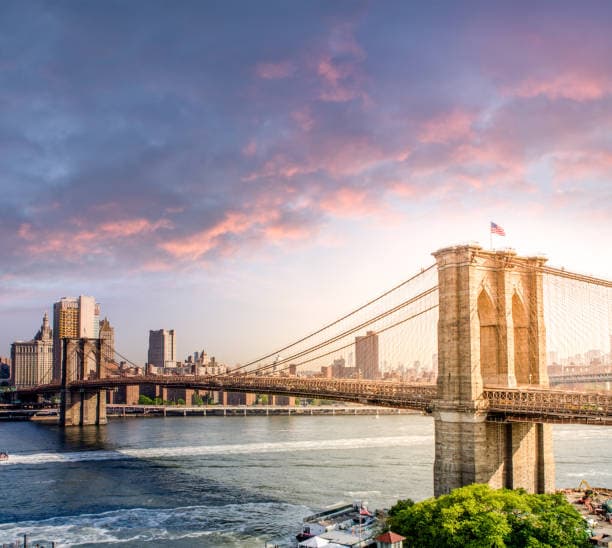

Suspension Cables

Overview

As you step onto the iconic Brooklyn Bridge, prepare to be captivated by its magnificent suspension cables, the very sinews that have held this engineering marvel aloft for over a century. These aren't just any cables; they represent a pinnacle of 19th-century innovation, silently bearing immense loads day after day in New York, United States. Four colossal main cables stretch across the East River, two positioned on the outside of the roadway and two nestled within the median. Each of these main cables measures an impressive 15.75 inches (40.0 cm) in diameter. Hidden within their thick embrace are 5,282 parallel, galvanized steel wires, meticulously bundled into 19 individual strands, with each strand comprising 278 wires. [3, 6, 8, 14] Beyond these primary supports, a network of 1,088 to 1,520 vertical suspender cables hangs downward, along with 400 diagonal cable stays extending from the towers, all working in concert to support the bridge's roadway and superstructure. [3] The completion of these cables in October 1878 marked a significant milestone, leading to the bridge's grand opening in 1883. [2, 9]

History & Cultural Background

The vision for the Brooklyn Bridge, and specifically its groundbreaking use of steel wire cables, originated with John A. Roebling, a German immigrant engineer. [4, 7, 10] Roebling had a pioneering spirit, having patented a unique method for weaving wire cables that he applied to several earlier bridges. [7, 10, 12] His innovative decision to use steel wire over traditional iron was driven by its superior strength and lighter weight. [4] Construction of this ambitious project commenced in 1870. [3, 13]

Tragically, John Roebling died from tetanus in 1869 after an accident during a survey of the bridge site, just as construction was beginning. [4, 7, 10, 14] His son, Washington Roebling, stepped into the formidable role of chief engineer. [3, 4, 7, 10, 14] However, Washington soon suffered from caisson disease (decompression sickness) due to his work in the underwater foundations, leaving him largely incapacitated and confined to his bed. [4, 7, 14] In a remarkable display of determination and intellect, his wife, Emily Warren Roebling, became his invaluable liaison, relaying his intricate instructions and overseeing the day-to-day progress of the monumental construction. [3, 4, 7, 10, 14] The main cables themselves were finally completed in October 1878, a testament to decades of relentless effort and ingenuity. [2, 9]

During the cable construction, a significant challenge arose: a contractor supplied defective wire. [2, 8, 9] To counteract this fraud, Washington Roebling made the critical decision to add 150 additional strands of wire to each main cable. This ensured the structural integrity of the bridge, maintaining a robust, albeit slightly lower, safety factor. [2, 8]

What Makes It Special

The suspension cables of the Brooklyn Bridge are truly extraordinary. This bridge was the first to incorporate steel for its cable wire and stands as the world's first major steel suspension bridge. [6, 7] John Roebling's initial design for these cables included an astonishingly high safety factor, making them six to eight times stronger than calculated necessary. [2, 5, 6, 8, 9] This deliberate over-engineering proved prescient, compensating for unexpected issues like the discovery of deficient wire during construction. Thanks to this foresight, the cables have admirably withstood the test of time, remaining largely as they were laid over 140 years ago, continuously carrying loads exceeding a thousand tons. [2]

Another unique aspect of these cables is the use of 'Brady splices,' an experimental connection method never used in bridges before or since. While these splices introduced stress points, the overwhelming strength of the overall cable system has ensured their enduring performance. [2] The innovative use of wire rope for suspension bridges was a monumental breakthrough, enabling the creation of spans far longer than previously thought possible. [5] The Brooklyn Bridge pioneered the technique of bundling thousands of individual steel wire strands into massive main cables, a method that revolutionized suspension bridge design. [4, 5]

Stories, Fun Facts & Local Details

The story of the Brooklyn Bridge's cables is not without its dramatic turns. The scandal involving the contractor who supplied substandard wire is a compelling detail, highlighting the integrity of the Roebling family who worked to mitigate the potential danger by fortifying the cables. [2, 8, 9] A famous anecdote illustrating public confidence (or a need to build it) in the bridge's immense strength occurred in 1884 when the showman P.T. Barnum led 21 elephants across the newly opened structure. [8, 14]

On opening day, Emily Warren Roebling, the woman who had become the bridge's de facto chief engineer, was granted the honor of being the first to cross, reportedly carrying a rooster as a symbol of triumph. [4, 7] The sheer scale of the undertaking is staggering: the four main cables alone contained over 14,000 miles of wire. [8, 10, 14] The painstaking process of spinning these cables, wire by wire, took 15 months of continuous, arduous labor. [8, 9] The outer wrapping wire and layers of protective painting have been crucial in preserving the original steel wires from the harsh elements, allowing them to perform their vital function for generations. [2]

Visitor Perspective

For visitors today, the suspension cables are an integral part of the Brooklyn Bridge experience. As you stroll along the pedestrian promenade, you walk beneath and beside these colossal ropes of steel, a constant reminder of the human ingenuity that connected Manhattan and Brooklyn. The sheer scale and intricate weaving of the cables are often a focal point for photographs and contemplation. You can observe the massive bundles of wire, encased and protected, stretching from the monumental Gothic towers to the anchorages. Even the decorative 'circles that look like fans' found on the bridge are functional elements, serving as fences to prevent climbing onto the cables, while discreet doors within them allow workers access for maintenance. [14] Standing on the bridge, surrounded by these historic cables, offers a powerful connection to the past and a deep appreciation for the vision and sacrifice that brought this enduring landmark to life. [2, 13]
