Exterior Lighting

Overview

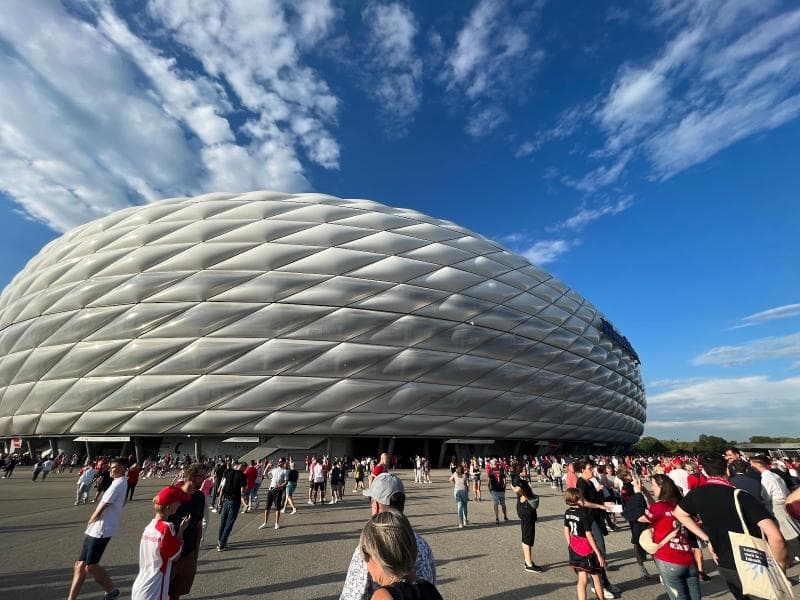

The Allianz Arena in Munich, Germany, is globally recognized not just as a state-of-the-art football stadium, but also as an architectural marvel, famously known for its extraordinary exterior lighting. This iconic feature transforms the stadium's facade into a giant, glowing beacon, visible from distances, even from planes flying over Munich. It was the first stadium in the world to boast a full color-changing exterior, a revolutionary design choice that makes it instantly identifiable. The exterior is composed of 2,784 inflated ETFE (ethylene tetrafluoroethylene) foil panels, giving it a unique 'air mattress' or 'dinghy' appearance.

More than 1,056 of these panels can be individually illuminated, covering an impressive surface area of approximately 26,000 square meters. This dynamic lighting system allows for an incredible range of visual displays, making the stadium's exterior a canvas for vibrant colors and subtle artistic expressions, reflecting its role as a cultural landmark in Bavaria.

History & Cultural Background

The concept for the Allianz Arena's distinctive lighting was integral to its original design by the renowned Swiss architectural firm Herzog & de Meuron. When the stadium opened in 2005, its facade was initially illuminated using fluorescent tubes. This groundbreaking design faced a unique challenge: to serve as the home ground for two rival Munich football clubs, FC Bayern Munich and TSV 1860 Munich, each with distinct team colors. The color-changing exterior provided an innovative solution, allowing the stadium to light up in red for Bayern, blue for TSV 1860, and white for the German national team.

A significant technological leap occurred in 2014 when the original lighting system was replaced with advanced LED technology by Philips (now Signify). This upgrade dramatically enhanced energy efficiency, reducing electricity consumption by about 60 percent and CO2 emissions by approximately 362 tons annually. Further enhancements continued, with the Zumtobel Group redesigning the inner roof area's lighting in 2019 and installing new LED balloon lights on the Esplanade in 2021, ensuring the entire stadium complex benefits from cutting-edge illumination.

What Makes It Special

The Allianz Arena's exterior lighting is a triumph of modern engineering and design. It features over 300,000 LED lights, distributed across approximately 6,500 Philips ColorGraze luminaires, creating an extremely homogeneous and three-dimensional appearance. Each ETFE panel can be controlled independently, offering a palette of 16 million colors. This extensive color range allows for intricate light shows, dynamic sequences, and subtle gradients that were impossible with the previous system.

The intelligent control software manages these complex displays, enabling the stadium to transition smoothly between colors or project moving patterns. Beyond mere aesthetics, the system is remarkably robust, designed to withstand extreme weather conditions, making it a reliable feature of Munich's skyline year-round. The illuminated area is roughly equivalent to three and a half professional football pitches, a scale that truly impresses both fans and casual observers.

Stories, Fun Facts & Local Details

The versatility of the Allianz Arena's lighting extends far beyond football matchdays. While it prominently displays FC Bayern's red or the German national team's white, it also illuminates in various colors for special events, national holidays, and awareness campaigns, such as rainbow colors for Pride celebrations or national flags for international events like the Paralympics. On non-match days, the stadium lights up for about three hours after sunset, typically showcasing a red-and-white dynamic, with transitions between a full red and a half-white, half-red display.

An interesting local detail is that while the system is capable of intricate multi-color and interchanging light schemes, the Munich Police have occasionally requested limitations on such displays due to concerns about distracting drivers on the nearby A9 Autobahn. Consequently, single-color systems are often preferred. The installation itself involved Austrian mountaineers who mounted the LED lights at heights of up to 25 meters, a testament to the ambitious nature of the project. The artistic lighting concepts, which include 'form-based waves' and 'pixel-based clouds' for non-match evenings, were also designed by Herzog & de Meuron, emphasizing a calm and elegant visual experience.

Visitor Perspective

For visitors approaching the Allianz Arena, the exterior lighting creates an immediate and powerful impression. Whether arriving for a match or simply admiring the stadium from afar, the glowing facade is an unforgettable sight, often described as having a futuristic, spaceship-like feel. The dynamic illumination builds anticipation and intensifies the emotional experience for fans, both those present at the stadium and television viewers worldwide. It acts as a vibrant welcome to the home of FC Bayern, signaling the energy and passion contained within its walls. The carefully choreographed light movements and color changes provide a mesmerizing visual spectacle, making the journey to the stadium an integral part of the overall event experience. The Allianz Arena's exterior lighting is not just a functional element; it is an active participant in the stadium's identity, adding to its renown as a global architectural and sporting icon.
